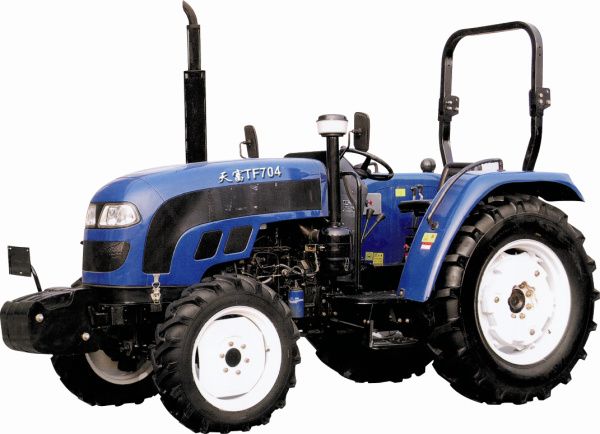

天富TB系列拖拉机
该系列拖拉机是一种多用途、中马力的农业轮式拖拉机，该机型具有结构紧凑，操作方便，转向灵活，牵引力大，用途广泛，维修
保养方便等特点。采用TB后桥，四轮驱动，12F+12R档位变速箱，全液压助力转向，双离合器，浮动控制式悬挂。可配装安全架，液压多路阀、暖风、空调驾驶室。
This series tractor is versatile,high-horsepower agricultural tractors,this model has compact structure,convenient operation,flexible steering,traction,versatile and easy maintenance Characteristics.This series use the TB chassis,4 wheel drive,12F+12R gear box,hydraulic steering,double clutch and 3 point linkage is adjustable by floating way.This series can choose to equip the roll bar,hydraulic multi -valves,heater and AC cabin.
产品型号Model | TF-704(700) | ||||
驱动形式Wheel Type | 4*4(4*2) | ||||
尺寸Dimensions of Tractor | 外形尺寸Dimension(L.W.H)mm | 3900*1700*2500 | |||
轮距Tread | 前轮轮距Front mm | 1265 | |||
后轮轮距Rear mm | 1312.1376.1408.1496OR1300-1500ajustable可调 | ||||
轴距Wheel base mm | 2072(2070) | ||||
最小离地间隙Min.Ground Clearance mm | 410(425) | ||||
重量Weight Kg | 2700 | ||||
发动机Engine | 型号Model | Quanchai4108T70 | |||
型式Type | Water cooled,vertical,4stroke and direct injection 水冷、直列、四冲程、直喷 | ||||
标定功率Rated Power Kw（hp) | 51.5 | ||||
轮胎Type size | 8.3-20/14.9-28 | ||||
离合器 Clutch | Single chip,dry friction and single stage clutch单片、干式、双作用离合器 | ||||
变速箱 Gear box | 6+1 | ||||
动力输出轴转速 PTO r/min(Optional) | 6 spline 540/760or540/1000 | ||||
| |||||
